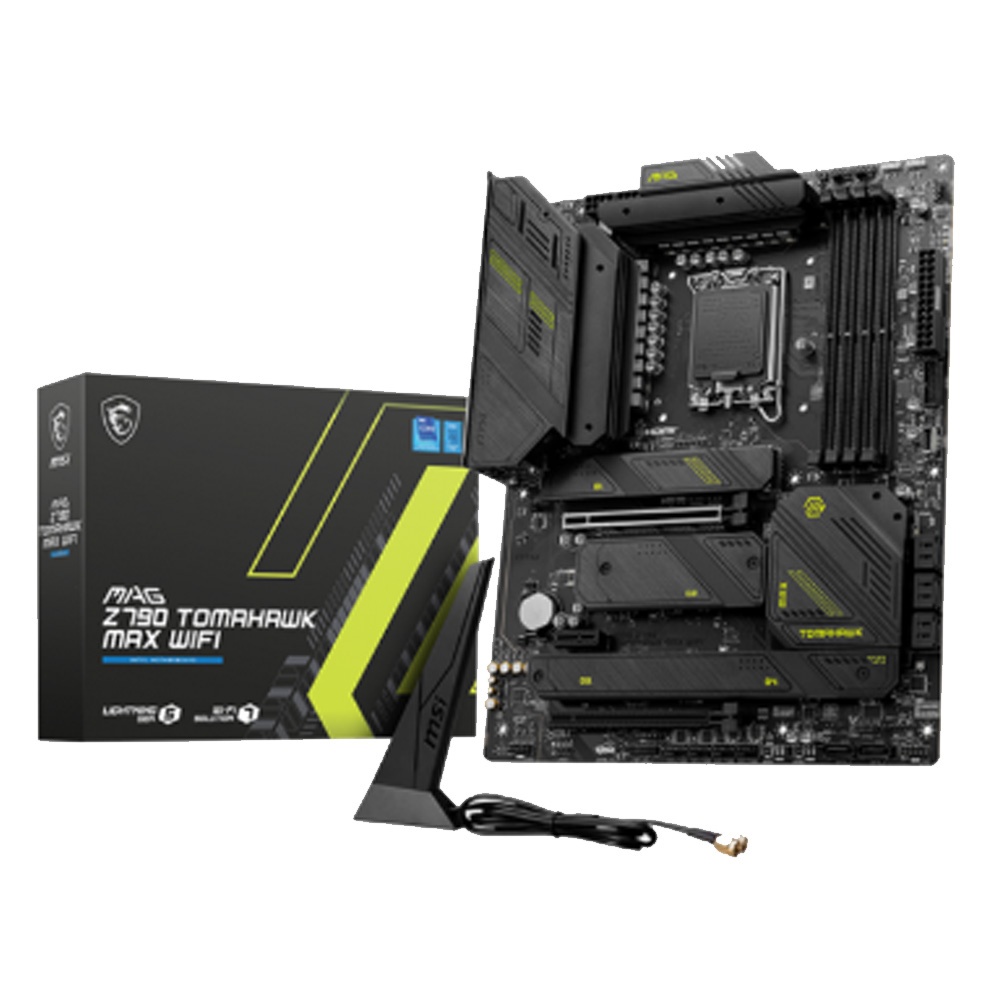

CHIPSETINTEL Z790
CPUSupport Intel Core 14th| 13th| 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
MEMORY4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 7800+(OC)| 7600(OC)| 7400(OC)| 7200(OC)| 7000(OC)| 6800(OC)|
6600(OC)| 6400(OC)| 6200(OC)| 6000(OC)| 5800(OC)| 5600(JEDEC)| 5400(JEDEC)| 5200(JEDEC)| 5000(JEDEC)| 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 7800+ MHz
1DPC 2R Max speed up to 6600+ MHz
2DPC 1R Max speed up to 6400+ MHz
2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
STORAGE4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110|2280|2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280|2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 | SATA mode, supports 2280|2260|2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280|2260|2242 devices
8x SATA 6G
*PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_1 slot.
*SATA_1 & SATA_2 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
*SATA_A1_A2 do not support RAID function.
USB4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LANIntel 2.5Gbps LAN
WIRELESS LAN & BLUETOOTHWi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX|RX, 2.4GHz | 5GHz | 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a| b| g| n| ac| ax| be

Supports Bluetooth 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every countrys regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor´s website for details.
Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
AUDIORealtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit|384 kHz playback on front panel
INTERNAL IO1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB4 card connector (JTBT_U4_1, supports RTD3)
LED FEATURE4x EZ Debug LED

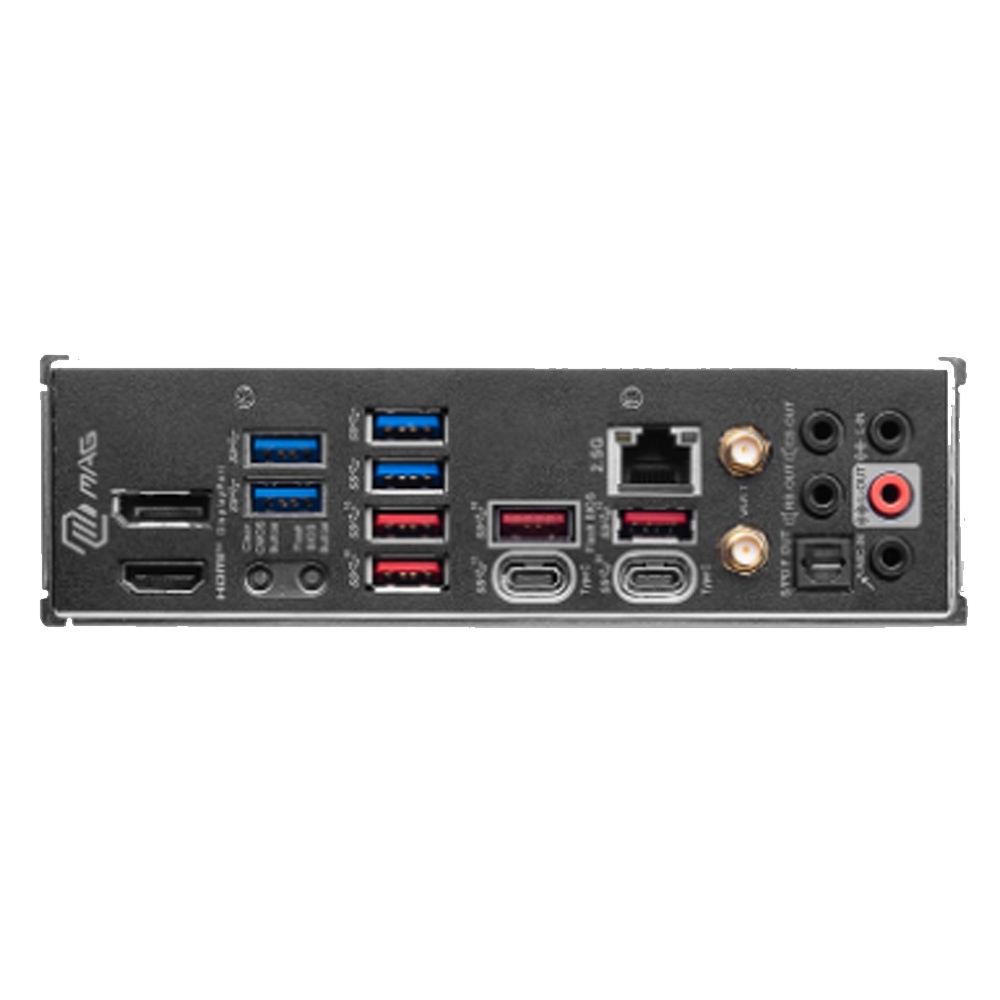

BACK PANEL PORTSDisplay Port
USB 3.2 Gen 1 5 Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A)
2.5G LAN
Wi-Fi | Bluetooth
Audio Connectors
HDMI
Clear CMOS
Flash BIOS
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
USB 3.2 Gen 2x2 20Gbps (Type-C)

OPERATING SYSTEMSupport for Windows 11 64-bit, Windows 10 64-bit
