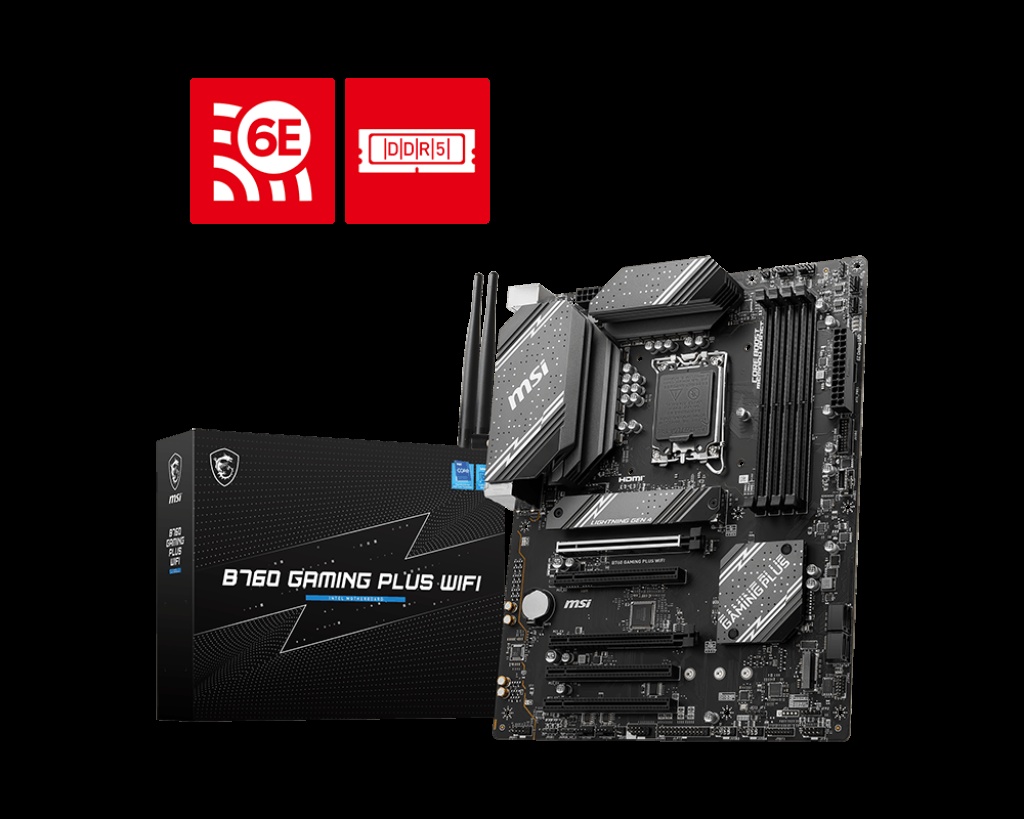

Mother MSI B760 GAMING PLUS WIFI DDR5 1700

Descripción:
CHIPSETINTEL B760
CPUSupport Intel Core 14th| 13th| 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
MEMORY4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 6800+(OC)| 6600(OC)| 6400(OC)| 6200(OC)| 6000(OC)| 5800(OC)| 5600(JEDEC)| 5400(JEDEC)| 5200(JEDEC)| 5000(JEDEC)| 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 6800+ MHz
1DPC 2R Max speed up to 6400+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110|2280|2260|2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 | SATA mode, supports 2280|2260|2242 devices
4x SATA 6G
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
LANRealtek RTL8125BG 2.5G LAN
WIRELESS LAN & BLUETOOTHIntel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX|RX, 2.4GHz | 5GHz | 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a| b| g| n| ac| ax

Supports Bluetooth 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIORealtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S|PDIF output
INTERNAL IO1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports
LED FEATURE4x EZ Debug LED
BACK PANEL PORTSKeyboard | Mouse
DisplayPort
2.5G LAN
USB 2.0
Wi-Fi | Bluetooth
Audio Connectors
USB 2.0
HDMI
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
S|PDIF-OUT

OPERATING SYSTEMSupport for Windows 11 64-bit, Windows 10 64-bit
PCB INFOATX
243.84mmx304.8mm
