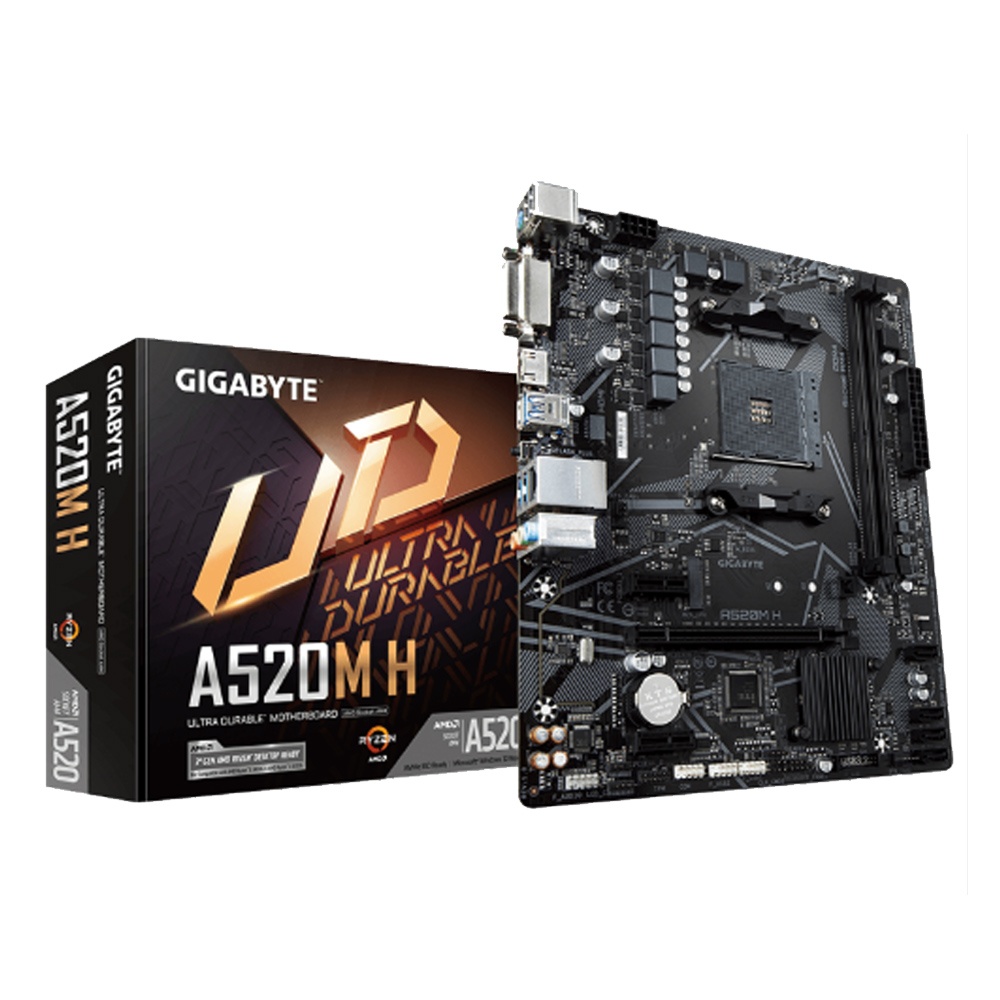

MOTHER GIGABYTE A520M H DDR4 AM4 (SERIE 3000|4000|5000) (9683)

Mother AMD A520 ultra duradera con solución VRM digital pura, LAN para juegos GIGABYTE con administración de ancho de banda, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, diseño de resistencias anti-azufre.


Procesador
1. AMD Socket AM4, support for: AMD Ryzen 5000 Series| Ryzen 5000 G-Series| 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
(Por favor, consulte la "Lista de Soporte de CPUs" para más información.)

Chipset1. AMD A520

Memoria1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
2. AMD Ryzen 5000 G-series processors:
Support for DDR4 4400(O.C.) | 4133(O.C.) | 4000(O.C.) | 3866(O.C.) | 3800(O.C.) | 3733(O.C.) | 3600(O.C.) | 3466(O.C.) | 3400(O.C.) | 3333(O.C.) | 3300(O.C.) | 3200 | 2933 | 2667 | 2400 | 2133 MHz memory modules
3. AMD Ryzen 5000 series processors:
Support for DDR4 4266(O.C.) | 4000(O.C.) | 3866(O.C.) | 3800(O.C.) | 3733(O.C.) | 3600(O.C.) | 3466(O.C.) | 3400(O.C.) | 3333(O.C.) | 3300(O.C.) | 3200 | 2933 | 2667 | 2400 | 2133 MHz memory modules
4. 3rd Gen AMD Ryzen Processors:
Support for DDR4 5100(O.C.) | 5000(O.C.) | 4866(O.C.) | 4600(O.C.) | 4400(O.C.) | 4000(O.C.) | 3600(O.C.) | 3333(O.C.) | 3200 | 2933 | 2667 | 2400 | 2133 MHz memory modules
5. 3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 5100(O.C.) | 5000(O.C.) | 4866(O.C.) | 4600(O.C.) | 4400(O.C.) | 4000(O.C.) | 3600(O.C.) | 3333(O.C.) | 3200 | 2933 | 2667 | 2400 | 2133 MHz memory modules
6. Arquitectura de memoria Dual Channel
7. Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8|2Rx8
8. Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8|2Rx8
9. Soporte para módulos de memoria Extreme Memory Profile (XMP)


Gráfica Integrada1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

AudioRealtek audio codec
Audio de alta definición
2|4|5.1|7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE´s website for details on configuring the audio software.

LANCPU
1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset
1. 2 x PCI Express x1 slots, supporting PCIe 3

Interfaz de almacenamientoCPU
1. 1 x M.2 connector (Socket 3, M key, type 2242|2260|2280 SATA and PCIe 3.0 x4|x2 SSD support)
Chipset
1. 4 x conector SATA 6Gb|s
2. Soporta RAID 0, RAID 1, y RAID 10

USBCPU
1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset
1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
2. 6 x puerto USB 2.0|1.1 (2 puertos en el panel posterior, 4 puertos disponibles a través de los conectores USB internos)

Conectores Internos E|S1. 1 x 24-pin ATX main power connector
2. 1 x conector de alimentación ATX 12V 8-pin
3. 1 x conector del ventilador de la CPU
4. 2 x cabeceras para ventilador del sistema
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 1 x Triple conector socket M.2
8. 4 x conectores SATA 6 Gb | s
9. 1 x front panel header
10. 1 x conector de audio en el panel frontal
11. 1 x conector para altavoz
12. 1 x USB 3.2 Gen 1 header
13. 2 x USB 2.0|1.1 headers
14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
La función TPM es opcional según las diferentes políticas locales
15. 1 x conector del puerto de serie
16. 1 x conector de intrusión en el chasis
17. 1 x Clear CMOS jumpe

Panel E|S Trasero1. 1 x puerto teclado | ratón PS | 2
2. 1 x puerto DVI-D
3. 1 x HDMI
4. 4 x USB 3.2 Gen 1 ports
5. 2 x puerto USB 2.0|1.1
6. 1 x Q-Flash Plus button
7. 1 x Puerto RJ-45
8. 3 x audio jacks
