VGA SAPPHIRE RADEON RX 6400 PULSE LR GDDR6 4G (2093)


GPU: Boost Clock: Up to 2321MHz

Memory: 4GB|64 bit DDR6. 16 Gbps Effective

Stream Processors: 768

RDNA 2 Architecture

Ray Accelerator: 12

GPU AMD Radeon RX 6400 Graphics Card
6nm GPU
AMD RDNA 2 Architecture

Engine Clock

Boost Clock: Up to 2321 MHz
Game Clock: Up to 2039 MHz


Stream Processors 768

Infinity Cache 16MB

Ray Accelerators 12

Memory Size|Bus 4GB GDDR6

Memory Clock 16 Gbps Effective

Displays Maximum 2 Displays

Resolution

HDMI: 76804320
DisplayPort1.4: 76804320
Interface PCI-Express 4.0

Output

1x HDMI
1x DisplayPort
BIOS Support

UEFI
Game Index 1080P

Sapphire Features

Fuse Protection
Axial Fan Cooling Technology
TriXX Supported
TriXX Boost

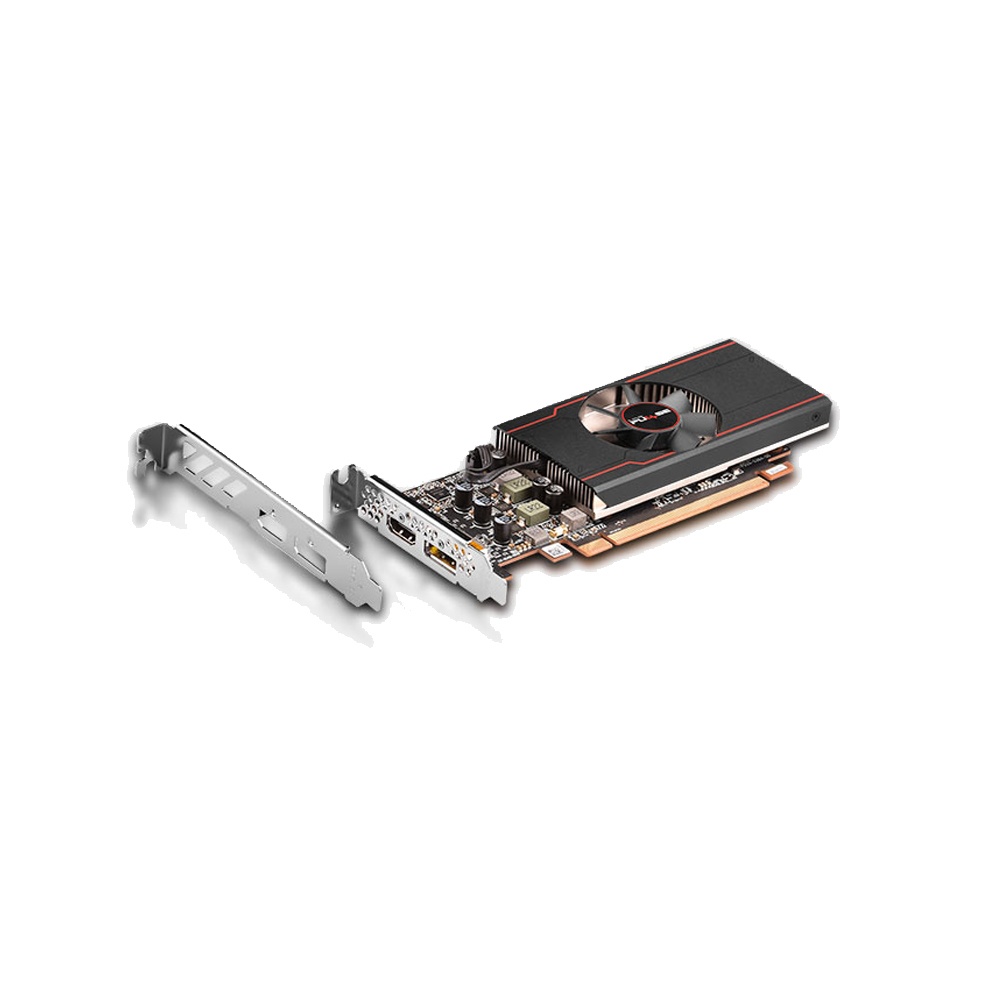

ATX Bracket Accessory
AMD Features

AMD RDNA 2 Gaming Architecture
DirectX 12 Ultimate support
AMD Smart Access Memory Technology
AMD Infinity Cache Memory Technology
6nm GPU
PCI Express 4.0 Support
AMD FreeSync Technology
DisplayPort 1.4 with DSC
HDMI support
Video Streaming up to 8K
AMD Radeon VR Ready Premium
AMD FidelityFX
AMD Radeon Image Sharpening
AMD Radeon Anti-Lag
AMD Software: Adrenalin Edition
Game Driver Optimizations
Cooling Axial Fan Cooling

Form Factor 1 slot, ATX

Low Profile

Dimension: 170(L)X 56.2(W)X 17.2(H)mm

Power Consumption 55W (Board Power)

OS Linux, Windows 7*, Windows 10, and Windows 11 64-bit operating system required

*Does not support all features including but not limited to Hardware Raytracing

System Requirement

Minimum 350 Watt Power Supply
PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
A display with HDMI or DisplayPort is required
